Alinco DJ-V57T Dual Band VHF UHF
|
Engineered for success, this dual-bander is packed with features:
- 2m/70cm dual-band hand held transceiver
- Choice of 3 power output levels: High 5W(13.8VDC), Low 0.5W and user-selectable Mid-power (1-3W)
- Quick-write memory channel (Uses a single key touch to copy current VFO data to the Lowest number of memory channels available)
- Direct frequency input through illuminated keypad
- High-grade water-resistant materials compatible to IPX7
- Rugged polycarbonate body resists dirt and dust
- Great audio with large 40mm internal speaker
- Easy-to-read backlit alphanumeric display
- 200 Memories, plus one call channel on each band
- VFO, Memory and Scan modes
- 39 CTCSS tone squelch (encode + decode) and 104 DCS
- Search-scan (programmed scanning) available on each band
- Tone burst function (1000, 1450, 1750 and 2100Hz)
- Battery-drain function avoids memory effect
- Two-touch repeater-setting access
- Internal VOX
- Wire cloning capability
- SMA antenna port
- 2-level attenuator
- DTMF encode and auto-dialer
|
| |

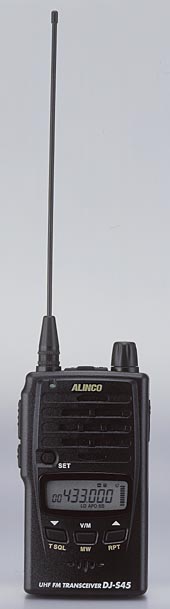

Alinco DJ-S45T UHF Mono Band
|
DJ-S45T/E UHF Monoband HT
Tough Enough to Tackle The Elements!
|
Click this image to download a brochure in PDF(146kb)
|
Alinco's engineers have combined leading edge technology in a compact UHF HT design that offers a full range of features plus a choice of power options.
The rugged design is resistant to rain, dirt and dust. Check out all the extras!
Features:
- Rugged, polycarbonate design resists rain, dirt and dust
- Advanced Quick Repeater Access mode allows you to recall previously set parameters with just 2 key actions regardless of current frequency setting.
Unlike other auto-repeater settings that limit the frequency range, these repeater-access parameters can be set separately from the original default parameters.
- Output:
2W with 6.0V external DC power source
approx. 1W with optional EBP-60 Li-Ion pack
approx. 0.5W with 2 Alkaline AA cells
approx. 0.4W with 2 Ni-MH rechargeable AA cells
Low power TX position (approx. 0.5W at 6.0Vdc, approx 150mW at 2 AA Ni-MH cells)
- Back-lit, Easy-to-Read LCD display
- 100 memories
- Computer-programmable with free software downloadable from Alinco website (with optional ERW-4C cable)
- SMA port and lightweight flexible whip antenna
- Receives 400-474MHz (T version only)
- Works with 2 AA cells yet powerful TX output and clear, crisp 200mW audio out
- 3 types of Scan functions (VFO, Memory, Tone) with timed/busy settings
- 39 separately selectable CTCSS encode/decode tones
- 3 different Tone Burst Tones
- 9 tuning steps and 1 MHz shift to quickly tune frequency
- Compact size 57W x 98H x 29.7D mm or 2.24W x 3.86H x 1.17D inches (w/o projections)
- Weight 162g or 0.36 lb inclusive of 2 AA alkaline cells and antenna
- Includes Auto-Power-OFF, Busy-Channel-Lockout, Time-Out-Timer, Battery Saver, Tone Call and Bell (pager)
- Mic/SP/EXT-DC ports
- MARS modifiable
|
|
| |

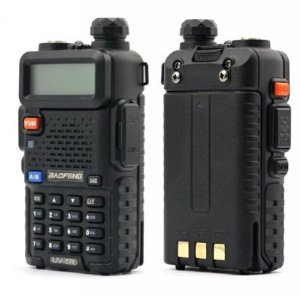

Baofeng UV-5R Dual Band VHF/UHF
|
BaoFeng UV-5R 136-174/400-480 MHz Dual-Band DTMF CTCSS DCS FM Ham Two Way Radio
Product Features
- 25KHz/12.5KHz Switchable
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- Frequency Range: 136-174 / 400-480MHz
- 128 Channels 50 CTCSS and 104 CDCSS
- Dual-Band Display, Dual Freq. Display, Dual-Standby
|
| |
Wouxun KG-UV3D Dual Band
|
Wouxun KG-UV3D Dual Band 128 Channel Handheld Amateur Radio
Dual band 2M/440 or 2M/220. KG-UV3D includes the extended life 1700 mAh Li-ion battery pack, a redesigned heavy duty textured case and the latest firmware with new features. Wouxun's new inexpensive, compact, full featured dual band
Features
- Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)
- Dual alpha numeric, backlit display with channel name edit
- Selectable high/low power settings (VHF: 5W high/1W low) (UHF: 4W high/1W low)
- Includes extended life 1700 mAh high capacity li-ion battery as standard
- Includes intelligent desktop 3-4 hour rapid charger
- Loud speaker audio output (500 mW)
- Bright flashlight illumination function
- Meets IP55 waterproof rating
- English female voice prompts enable non-sighted operation (can be turned off)
- 128 memory channels (shared)
- VOX Function
- Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
- Wide/narrow bandwidth selection (25 or 12.5 kHz)
- Power on display: show battery voltage, 6-character customizable welcome message, or display test
|
- Radio to radio cloning with optional cable (SKU: WXCLN)
- Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
- 105 groups DCS/50 groups CTCSS
- DTMF encoding (includes ABCD tones, continuous with button press duration)
- CTCSS encode/Decode (no decode delay)
- Stopwatch function
- SOS function
- Low-voltage voice prompt
- Busy channel lockout
- Selectable transmit over timer (from 15 to 600 seconds)
- Selectable step sizes of 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
- Multiple scan modes including priority scan
- Keypad lock (auto or manual)
- Programmable by computer or keypad
- High contrast white backlit keypad. All keys are backlit (except A/B & TDR)
|
|
| |
